Generate a Bell State & Visualize Sampling Results

Introduction

A Bell state is one of four maximally entangled two-qubit states, and in the two-qubit Hilbert space form an orthonormal basis. In quantum mechanics, a Hilbert space is a complete vector space equipped with an inner product. Each quantum state (like ∣0⟩, ∣1⟩, or a superposition) is represented as a vector in this space, and quantum operations are represented as linear transformations (matrices) acting on these vectors. Mathematically, the four Bell states are given by:

$$|\Phi^+\rangle = \frac{1}{\sqrt{2}} (|00\rangle + |11\rangle) \\ |\Phi^-\rangle = \frac{1}{\sqrt{2}} (|00\rangle - |11\rangle) \\ |\Psi^+\rangle = \frac{1}{\sqrt{2}} (|01\rangle + |10\rangle) \\ |\Psi^-\rangle = \frac{1}{\sqrt{2}} (|01\rangle - |10\rangle)$$

Each Bell state represents a maximally entangled pair of qubits, meaning measurement outcomes on one qubit are perfectly correlated (or anticorrelated) with those of the other.

In the following example notebook, a two qubit quantum circuit is represented and the results visulised.

# %pip install "quri-parts[braket,cirq,qiskit,qulacs,tket]"

Building a Simple Quantum Circuit

In this section, we construct a two-qubit quantum circuit that generates the Bell state.

$$|\Phi^+\rangle = \frac{1}{\sqrt{2}} (|00\rangle + |11\rangle)$$

The core classes from the quri_parts library are imported, which provides tools for building and simulating quantum circuits with backends.

from quri_parts.circuit import QuantumCircuit
from quri_parts.qulacs.sampler import create_qulacs_vector_sampler
from quri_parts.circuit.utils.circuit_drawer import draw_circuit
import matplotlib.pyplot as plt
from collections import Counter

A quantum circuit object with two qubits is initialized, where each qubit starts in the ∣0⟩ state.

n_qubits = 2
circuit = QuantumCircuit(n_qubits)

A Hadamard gate (H) on the first qubit creates a superposition. Then a CNOT gate entangles the two qubits, using the first as the control and the second as the target. Together, these operations produce the Bell state ∣Φ+⟩. As shown, the circuit can easily be visulised.

circuit.add_H_gate(0)
circuit.add_CNOT_gate(0, 1)
draw_circuit(circuit)

The number of times the circuit should be executed (or sampled) is then specified. Here, shots represents one measurement of the two-qubit system after running the circuit. The more shots we take, the more accurately we can estimate the underlying probability distribution. In the following example, the qulacs vector sampler is a simulator backend from the QuriParts library. It uses state-vector simulation (as opposed to hardware execution) to compute measurement outcomes with high precision.

# Create a sampler and perform sampling
shots = 1000
sampler = create_qulacs_vector_sampler()
sampling_result = sampler(circuit, shots=shots)
print(sampling_result)

This simple two-step circuit is the canonical example of quantum entanglement, forming the foundation for many quantum algorithms and communication protocols.

Visualization of Sampling Results

A visulisation of the sampling results is projected onto a histogram.

def visualize_sampling_result(sampling_results, total_shots=1000, options="partial"):
    """
    Visualizes the sampling results by plotting a bar graph of the probabilities.

    Args:
        sampling_results (dict): A dictionary containing the sampling results, where the keys are the states and the values are the counts.
        total_shots (int, optional): The total number of shots. Defaults to 1000.
        options (str, optional): The options for processing the sampling results. Defaults to "partial".
            - "partial": Only consider the states present in the sampling results.
            - "complete": Consider all possible states and set the count to 0 if not present.
    """
    if options == "complete":
        # All possible states (0 to 2^n_qubits) with counts from sampling_results or 0 if not present
        all_states = set(range(2**n_qubits))
        fixed_results = {state: sampling_results.get(state, 0) for state in all_states}

        # Convert to Counter object for easier processing
        sampling_results = Counter(fixed_results)

    # Convert keys to binary representation for visualization
    binary_keys = [f'{key:0{n_qubits}b}' for key in sampling_results.keys()]

    # Calculate probabilities by dividing counts by the total shots
    probabilities = [count / total_shots for count in sampling_results.values()]

    # Plot the bar graph
    plt.bar(binary_keys, probabilities, color='crimson')

    # Add labels and title
    plt.xlabel('State (Binary Representation)')
    plt.ylabel('Probability')
    plt.title('Sampling Result')

    # Display the graph
    plt.show()

visualize_sampling_result(sampling_result, total_shots=shots, options="complete")

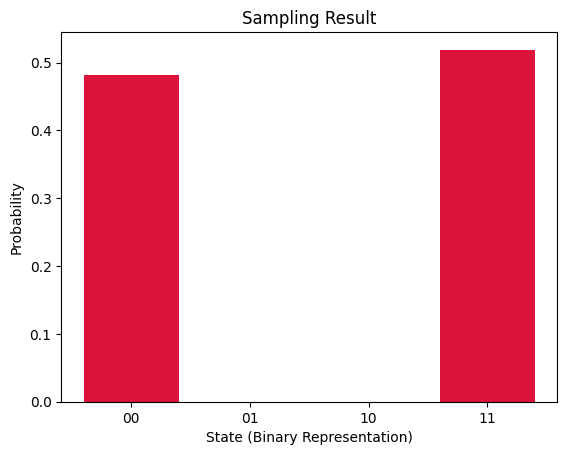

This result tells us that, out of 1000 measurements:

• About half of the outcomes were 00
• About half were 11
• No (or almost no) outcomes were 01 or 10

This distribution matches the expected behavior of the Bell state earlier prepared. Here, the two qubits are entangled (their states are perfectly correlated). When we measure one qubit and find it in state 0, the other is found in 0; when one is measured as 1, the other is 1. Importantly, neither qubit individually has a definite state before measurement.

Other Bell States

To quickly prepare and visulise Bell states, the following function assembles the quantum circuits.

def bell_state_circuit(label: str):
    """Return a circuit preparing one of the four Bell states."""
    qc = QuantumCircuit(2)
    qc.add_H_gate(0)
    qc.add_CNOT_gate(0, 1)

    if label == "Phi-":
        qc.add_Z_gate(0)  # Flip phase of |11⟩ component
    elif label == "Psi+":
        qc.add_X_gate(1)  # Flip target qubit to swap |00⟩→|01⟩, |11⟩→|10⟩
    elif label == "Psi-":
        qc.add_X_gate(1)
        qc.add_Z_gate(0)
    elif label != "Phi+":
        raise ValueError("label must be one of 'Phi+', 'Phi-', 'Psi+', 'Psi-'")

    return qc

# Example: create and draw each circuit
for label in ["Phi+", "Phi-", "Psi+", "Psi-"]:
    print(f"{label} circuit:")
    draw_circuit(bell_state_circuit(label))
    print("\n")

These quantum circuits can then be sampled and their results visulised.
