Introduction
Quantum chemistry is an active research area in the current era of quantum computing. In QURI Parts, we provide an abundant of features for supporting quantum chemistry computations on quantum computers. In the quantum chemistry part of the tutorial, we aim to introduce:
- Molecular hamiltonian generation
- Numerous ansatz states representing molecular wave functions
as well as other related topics that builds up the quantum chemistry sector of QURI Parts.
In this introduction page, we demonstrate how to obtain the potential energy curve of a hydrogen molecule with the quantum chemistry features provided by QURI Parts. The features shown here include
- Hamiltonian generation for obtaining H2 hamiltonian
- Fermion-qubit mapping for getting the Hartree-Fock state of H2 molecule
- Trial ansatz:
KUpCCGSDas VQE input.
Hamiltonian and ansatz
We first construct the H2 Hamiltonian and a 1-UpCCGSD ansatz state:
import numpy as np
from pyscf import scf, gto
from quri_parts.pyscf.mol import get_spin_mo_integrals_from_mole
from quri_parts.openfermion.mol import get_qubit_mapped_hamiltonian
from quri_parts.openfermion.ansatz import KUpCCGSD
from quri_parts.core.operator import Operator
from quri_parts.core.state import apply_circuit, ParametricCircuitQuantumState
from quri_parts.circuit.utils.circuit_drawer import draw_circuit
def get_h2_hamiltonian_and_ansatz(r: float) -> tuple[Operator, ParametricCircuitQuantumState]:
mole = gto.M(atom=f"H 0 0 0; H 0 0 {r}")
mf = scf.RHF(mole).run(verbose=0)
hamiltonian, mapping = get_qubit_mapped_hamiltonian(
*get_spin_mo_integrals_from_mole(mole, mf.mo_coeff)
)
ansatz_circuit = KUpCCGSD(2*mole.nao, k=1, fermion_qubit_mapping=mapping)
hf_state = mapping.state_mapper([0, 1])
ansatz_state = apply_circuit(ansatz_circuit, hf_state)
return hamiltonian, ansatz_state
hamiltonian, ansatz_state = get_h2_hamiltonian_and_ansatz(1.0)
We may print out the Hamiltonian and draw the 1-UpCCGSD ansatz circuit.
print("Hamiltonian:")
for op, coeff in hamiltonian.items():
print(f"{np.round(coeff, 5)} * {op}")
#output
Hamiltonian:
(-0.32761+0j) * I
(0.13717+0j) * Z0
(0.13717+0j) * Z1
(-0.13036+0j) * Z2
(-0.13036+0j) * Z3
(0.1566+0j) * Z0 Z1
(0.10623+0j) * Z0 Z2
(0.15543+0j) * Z0 Z3
(0.15543+0j) * Z1 Z2
(0.10623+0j) * Z1 Z3
(0.16327+0j) * Z2 Z3
-0.0492 * X0 X1 Y2 Y3
0.0492 * X0 Y1 Y2 X3
0.0492 * Y0 X1 X2 Y3
-0.0492 * Y0 Y1 X2 X3
print("Ansatz circuit:")
draw_circuit(ansatz_state.parametric_circuit, line_length=400)
#output
Ansatz circuit:
___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___
| X | |PPR| |PPR| |PPR| |PPR| |PPR| |PPR| |PPR| |PPR| |PPR| |PPR|
--|0 |---|2 |---|3 |-------------------|6 |---|7 |---|8 |---|9 |---|10 |---|11 |---|12 |---|13 |-
|___| | | | | | | | | | | | | | | | | | | | |
___ | | | | ___ ___ | | | | | | | | | | | | | | | |
| X | | | | | |PPR| |PPR| | | | | | | | | | | | | | | | |
--|1 |---| |---| |---|4 |---|5 |---| |---| |---| |---| |---| |---| |---| |---| |-
|___| | | | | | | | | | | | | | | | | | | | | | | | |
| | | | | | | | | | | | | | | | | | | | | | | |
| | | | | | | | | | | | | | | | | | | | | | | |
----------| |---| |---| |---| |---| |---| |---| |---| |---| |---| |---| |---| |-
|___| |___| | | | | | | | | | | | | | | | | | | | |
| | | | | | | | | | | | | | | | | | | |
| | | | | | | | | | | | | | | | | | | |
--------------------------| |---| |---| |---| |---| |---| |---| |---| |---| |---| |-
|___| |___| |___| |___| |___| |___| |___| |___| |___| |___|
The first two X gates labelled 0 and 1 are the state preparation gates for generating the Hartree-Fock state. The rest of the gates labelled "PPR" are parametric multi-Pauli rotation gates that builds up the 1-UpGCCSD ansatz.
VQE and potential energy curve
With the Hamiltonian and ansatz state above, let's run VQE for bound lenth 0.1 angstrom to 3.0 angstrom.
import numpy as np
from quri_parts.qulacs.estimator import (
create_qulacs_vector_parametric_estimator,
create_qulacs_vector_concurrent_parametric_estimator
)
from quri_parts.core.utils.recording import recordable, Recorder, RecordSession, INFO
from quri_parts.core.estimator.gradient import create_parameter_shift_gradient_estimator
from quri_parts.algo.optimizer import OptimizerStatus, LBFGS, CostFunction, GradientFunction
@recordable
def get_potential_energy_curve(recorder: Recorder) -> None:
parametric_estimator = create_qulacs_vector_parametric_estimator()
cp_estimator = create_qulacs_vector_concurrent_parametric_estimator()
gradient_estimator = create_parameter_shift_gradient_estimator(cp_estimator)
def vqe(cost: CostFunction, grad: GradientFunction, init_param: list[float]) -> float:
optimizer = LBFGS()
op_state = optimizer.get_init_state(init_param)
while True:
op_state = optimizer.step(op_state, cost, grad)
if op_state.status == OptimizerStatus.CONVERGED or op_state.status == OptimizerStatus.FAILED:
break
return op_state.cost
for r in np.linspace(0.1, 3.0, 30):
hamiltonian, ansatz_state = get_h2_hamiltonian_and_ansatz(r)
cost = lambda param: parametric_estimator(hamiltonian, ansatz_state, param).value.real
grad = lambda param: np.array(gradient_estimator(hamiltonian, ansatz_state, param).values).real
init_param = np.random.random(ansatz_state.parametric_circuit.parameter_count)
energy = vqe(cost, grad, init_param)
recorder.info(np.round(r, 1), energy)
# Run VQE:
record_session = RecordSession()
record_session.set_level(INFO, get_potential_energy_curve)
with record_session.start():
get_potential_energy_curve()
history, = record_session.get_records().get_history(get_potential_energy_curve)
energy_list = [e.data[1] for e in history.entries]

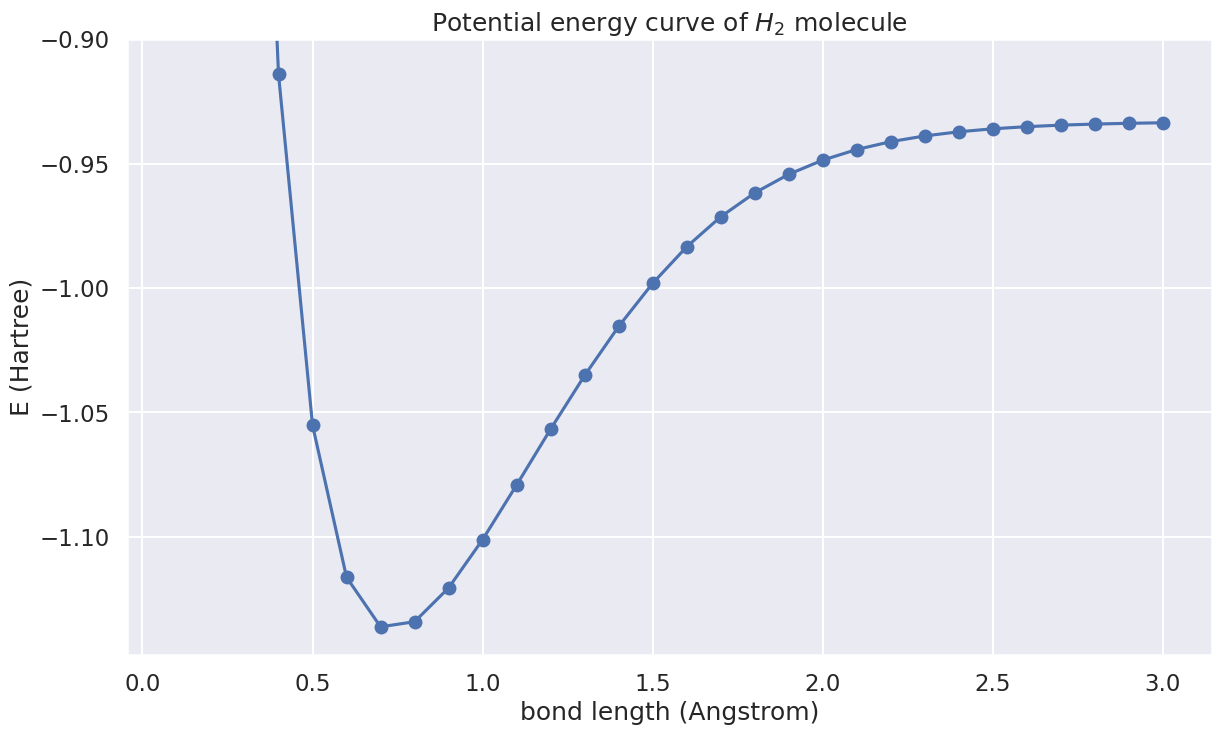

We are finally in a place to draw the potential energy curve.
import matplotlib.pyplot as plt
import seaborn as sns
sns.set_theme("talk")
plt.rcParams["figure.figsize"] = (14, 8)
plt.rcParams["font.size"] = 18
plt.plot(np.linspace(0.1, 3.0, 30), energy_list, "-o")
plt.title("Potential energy curve of $H_2$ molecule")
plt.xlabel("bond length (Angstrom)")
plt.ylabel("E (Hartree)")
plt.ylim(min(energy_list) * 1.01, -0.9)
plt.show()
